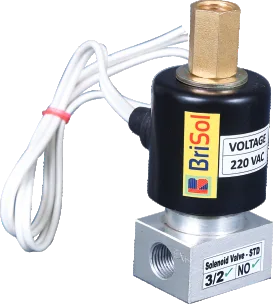

BR-SV-3W · Fig. 1Stock मेंMade in Coimbatore
Solenoid valve 3/2
BR-SV-3W
Standard model · direct acting
Three-port, two-position direct-acting solenoid valve for single-acting cylinders, pilot air and exhaust. Normally closed or normally open; 2 mm orifice to 10 bar, 1.2 mm to 20 bar.
Valve type3/2 normally closed or normally open, direct acting
Valve seatPoppet
BodyAluminium, brass or stainless steel
Orifice2 mm (to 10 bar) · 1.2 mm (to 20 bar)
Working pressure0–10 bar or 0–20 bar
Ports1/4" or 1/2" BSP
MediaAir, light oil
SealNitrile (NBR)
LeakageZero, seat and assembly
MountingUpright; base mounting with self-tapping screws
Voltages12, 24, 36, 110, 220 V AC 50 Hz · same in DC
Voltage tolerance±10% of nominal
CoilContinuous duty · class F
Electrical connectionLead wires
DatasheetBR-SV-3W_datasheet.pdf
CatalogueBRISOL_catalogue.pdf
Specifications अंग्रेज़ी में प्रकाशित हैं।
ऑर्डर कोड बनाएँ
2026 price list आने तक order codes अस्थायी हैं। Code अपनी पूछताछ के साथ भेजें, हम पुष्टि कर देंगे।
Application
Single-acting cylinders
Pressurises the cylinder to extend and exhausts it for spring return.
Application
Pilot air
Pilots larger process valves and actuators from a small coil.
Application
High-pressure lines
The 1.2 mm orifice version holds to 20 bar.
दूसरा ब्रांड बदल रहे हैं?
अपने valve का part number या फ़ोटो भेजें। हम port, pressure, media और coil voltage मिलाकर WhatsApp पर पुष्टि करते हैं।
